    PE Jacket Direct Burial Armored Fiber Optic Cable , GYTS53 Underground Optical Cable

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : GYTS53
    Certification : CE/ROHS/ISO9001/ANATEL
    Payment Terms : T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    PE Jacket Direct Burial Armored Fiber Optic Cable , GYTS53 Underground Optical Cable

    Double Jacket Steel Tape Direct Buried Armoured Optical Fiber Cable GYTS53 Underground Fiber Cable


    Description:

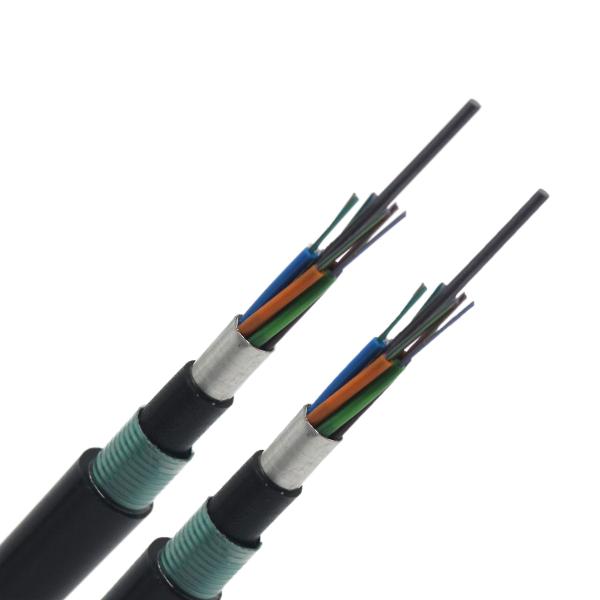

    The GYTS53 Outdoor Direct Buried Fiber Optics Cable, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire sometimes sheathed with polyethylene (PE) for cable with high fibre count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP Is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.


    Features:


    GYTS53 Cable Fiber Optic complies with Standard YD/T 901-2001as well as IEC 60794-1..
    Good mechanical and temperature performance
    High strength loose tube that is hydrolysis resistant
    Special tube filling compound ensure a critical protection of fiber
    PE sheath protects cable from ultraviolet radiation
    Good crush ability,applies for duct and directly buried application
    Single steel wire as central strength member
    Special tube filling compound ensure a critical protection of fiber
    Fully filled in the cable
    Double APL layers prevent the moisture
    Good water-blocking tape prevent the sinking vertically


    PE Jacket Direct Burial Armored Fiber Optic Cable , GYTS53 Underground Optical Cable


    Technical Parameters:


    Cable TypeFiber CountTubesFillersCable DiameterCable WeightTensile StrengthCrush ResistanceBending Radius
    Long/Short TermLong/Short TermStatic/Dynamic
    mmkg/kmNN/100mmmm
    GYTY53-2~62~61513.81881000/30001000/300010D/20D
    GYTY53-8~128~122413.81881000/30001000/300010D/20D
    GYTY53-14~1814~183313.81881000/30001000/300010D/20D
    GYTY53-20~2420~244213.81881000/30001000/300010D/20D
    GYTY53-26~3026~305113.81881000/30001000/300010D/20D
    GYTY53-32~3632~366013.81881000/30001000/300010D/20D
    GYTY53-38~4838~484114.62061000/30001000/300010D/20D
    GYTY53-50~6050~605014.62061000/30001000/300010D/20D
    GYTY53-62~7262~7260152151000/30001000/300010D/20D
    GYTY53-74~8474~847116.42541000/30001000/300010D/20D
    GYTY53-86~9686~968016.42541000/30001000/300010D/20D
    GYTY53-98~10898~1089117.82901000/30001000/300010D/20D
    GYTY53-110~120110~12010017.82901000/30001000/300010D/20D
    GYTY53-122~132122~13211119.53401000/30001000/300010D/20D
    GYTY53-134~144134~14412019.53401000/30001000/300010D/20D
    GYTY53-146~216146~21619.53451000/30001000/300010D/20D

    Package and Delivery


    PE Jacket Direct Burial Armored Fiber Optic Cable , GYTS53 Underground Optical Cable
