    Armored Single Mode Outdoor Fiber Optic Cable GYTA 2-288 Core G652D 250μm

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : GYTA Optical Fiber Cable
    Certification : CE/ROHS/ISO9001/ANATEL
    Payment Terms : T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Armored Single Mode Outdoor Fiber Optic Cable GYTA 2-288 Core G652D 250μm

    Single Mode Optical GYTA Outdoor 2-288 Core Armored Fiber Optic Cable For Communication Cable

    Description:

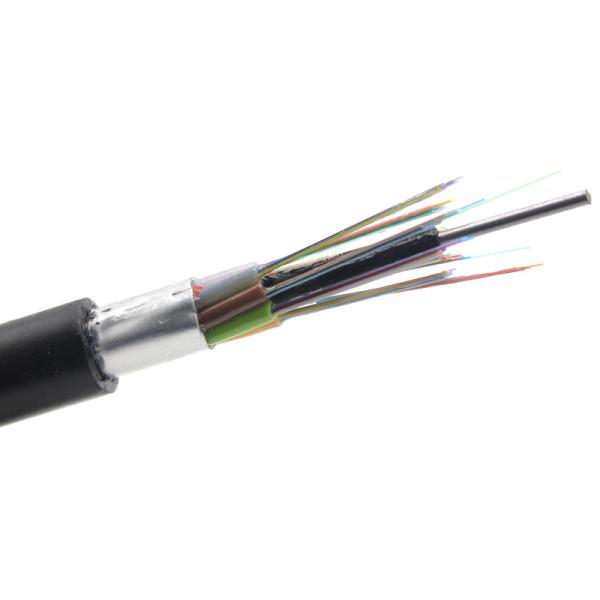

    GYTA single-armored cables feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath. It‘s suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

    Features:

    GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
    Good mechanical and temperature performance
    High strength looes tube that is hydrolysis resistant
    Special tube filling compound ensure a critical protection of fiber
    Crush resistance and flexibility
    The following measures are taken to ensure the cable watertight:
    Single Fiber Reinforced Plastic as the central strength member
    Loose tube filling compound
    100% cable core filling


    Application:
    Long-distance telecom, LAN in high-voltage area or access to telecom network
    Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
    Recommended layings methods
    Advantages:
    1. Low dispersion and attenuation.
    2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
    environmental characteristics.
    3. Anti-electromagnetism ability.
    4. Small cable diameter, light cable weight, easily to install.
    Performance :
    Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm Fiber : G652D
    Installation: Suitable for aerial or duct
    Application: Apply to Long distance communication system, Local area network system and Subscriber network system
    Operating temperature : -40°C~+70°C
    Permisson bent radius Static : 10 times O.D.
    Dynamic : 20 times O.D.


    Technical Parameters:

    Cable TypeFiber CountTubesFillersCable DiameterCable WeightTensile StrengthCrush ResistanceBending Radius
    Long/Short TermLong/Short TermStatic/Dynamic
    mmkg/kmNN/100mmmm
    GYTA-2~62~6149.790600/1500300/100010D/20D
    GYTA-8~128~12239.790600/1500300/100010D/20D
    GYTA-14~1814~18329.790600/1500300/100010D/20D
    GYTA-20~2420~24419.790600/1500300/100010D/20D
    GYTA-26~3026~30509.790600/1500300/100010D/20D
    GYTA-32~3632~366010.21041000/3000300/100010D/20D
    GYTA-38~4838~4841111171000/3000300/100010D/20D
    GYTA-50~6050~6050111171000/3000300/100010D/20D
    GYTA-62~7262~726011.51261000/3000300/100010D/20D
    GYTA-74~8474~847113.41541000/3000300/100010D/20D
    GYTA-86~9686~968013.41541000/3000300/100010D/20D
    GYTA-98~10898~1089114.81851000/3000300/100010D/20D
    GYTA-110~120110~12010014.81851000/3000300/100010D/20D
    GYTA-122~132122~13211116.92281000/3000300/100010D/20D
    GYTA-134~144134~14412016.92281000/3000300/100010D/20D
    GYTA-146~216146~21616.92331000/3000300/100010D/20D




    Package and Delivery
