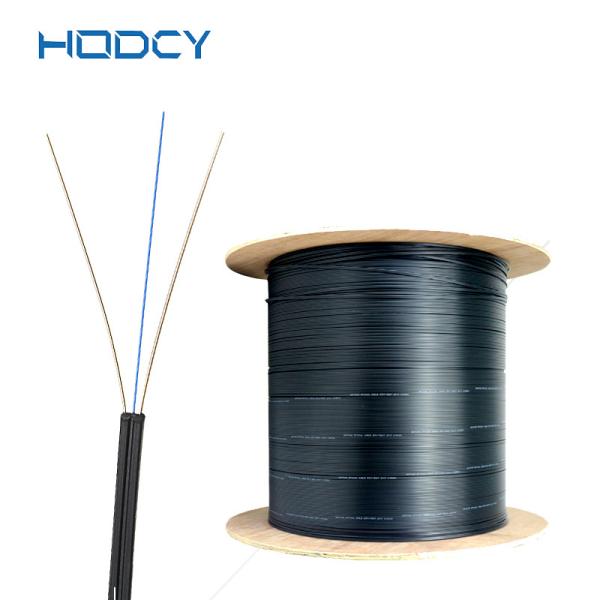

    FTTH Outdoor Drop Cable Patch Cord , Aerial Self Supporting Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : GJYXFCH drop fiber optic cable
    Certification : CE ROHS
    Price : 0.07USD/Meter
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    FTTH Outdoor Drop Cable Patch Cord , Aerial Self Supporting Fiber Optic Cable

    Ftth Flat Drop Indoor Outdoor Fiber Optic Cable G657A LSZH Fibra Optica Drop Cable


    Description:

    • The optical fiber unit is positioned in the center.
    • Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
    • Then the cable is completed with a black or white color LSZH sheath.

    Features:

    • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
    • Two parallel strength members ensure good performance of crush resistance to protect the fiber
    • Simple structure, light weight and high practicability
    • Novel flute design, easily strip and splice, simplify the installation and maintenance
    • Low smoke, zero halogen and flame retardant sheath
    • Simple structure, light weight and high practicability

    Application:

    • Used in indoor cabling, especially used for FTTH
    • Used as access building cable

    Cable construction details


    ItemsUnitG.657A1 Specification
    Mode Field Diameter1310nmμm9.0±0.4
    1550nmμm10.1±0.5
    Cladding Diameterμm124.8±0.7
    Cladding Non-Circularity%≤0.7
    Core-Cladding Concentricity Errorμm≤0.5
    Coating Diameterμm245±5
    Coating Non-Circularity%≤6.0
    Cladding-Coating Concentricity Errorμm≤12.0
    Cable Cutoff Wavelengthnmλcc≤1260
    Attenuation (max.)1310nmdB/km≤0.35
    1550nmdB/km≤0.21
    Macro-Bending Loss1turn×10mm radius@1550nmdB≤0.75
    1turn×10mm radius@1550nmdB≤1.5


    Cable mechanical and environment characteristics

    Cable codeFiberCable diameterCableTensilseCrushBedning
    CountmmweightStrengthResistanceRadius
    Kg/kmLong/Short termLong/Short termDynamic/Static
    NNmm
    GJXFH-11(2.0±0.2)×(3.0±0.2)830/60300/100015/30
    GJXFH-22(2.0±0.2)×(3.0±0.2)8.530/60300/100015/30
    GJXFH-44(2.0±0.2)×(3.0±0.2)1030/60300/100015/30
    GJXH-11(2.0±0.2)×(3.0±0.2)930/60300/100015/30
    GJXH-22(2.0±0.2)×(3.0±0.2)9.530/60300/100015/30
    GJXH-44(2.0±0.2)×(3.0±0.2)1030/60300/100015/30

    Fiber characteristics

    Fiber styleUnitSM G652DMM 50/125OM3-150
    Conditionmm1310/1550850/1300850/1300
    AttenuationdB/km≤0.36/0.23≤3.0/1.0≤3.0/1.0
    Cladding diameterum125±1125±1125±1
    Cladding non-circularity%≤1.0≤1.0≤1.0
    Coating diameterum242±7242±7242±7
