    2-24 Core GYXTW Armored Multimode Fiber Optic Cable Double Parallel FRP

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : GYTXW Fiber Cable
    Certification : CE/ROHS/ISO9001/ANATEL
    Payment Terms : T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    2-24 Core GYXTW Armored Multimode Fiber Optic Cable Double Parallel FRP


    Outdoor Double Steel Wire Armored Aerial GYTXW Fiber Cable

    Description:


    Double parallel FRP or steel wires with good compressive properties and protect optical fibers.

    Simple in structure, light in weight and universally used.

    A single steel wire or stranded wire with additional reinforcing elements to make the cable with good anti-tensile properties.

    Unique groove design, easy to be peeled, easy to be connected,installed and maintenance.

    LSZH sheath is good for environmental protection.


    Features:

    1.GYXTW cable complies with Standard YD/T 769-2003.
    1.Good mechanical and temperature performance
    2.High strength loose tube that is hydrolysis resistant
    3.Special tube filling compound ensure a critical protection of fiber
    4.Crush resistance and flexibility
    5.PSP enhancing moisture-proof

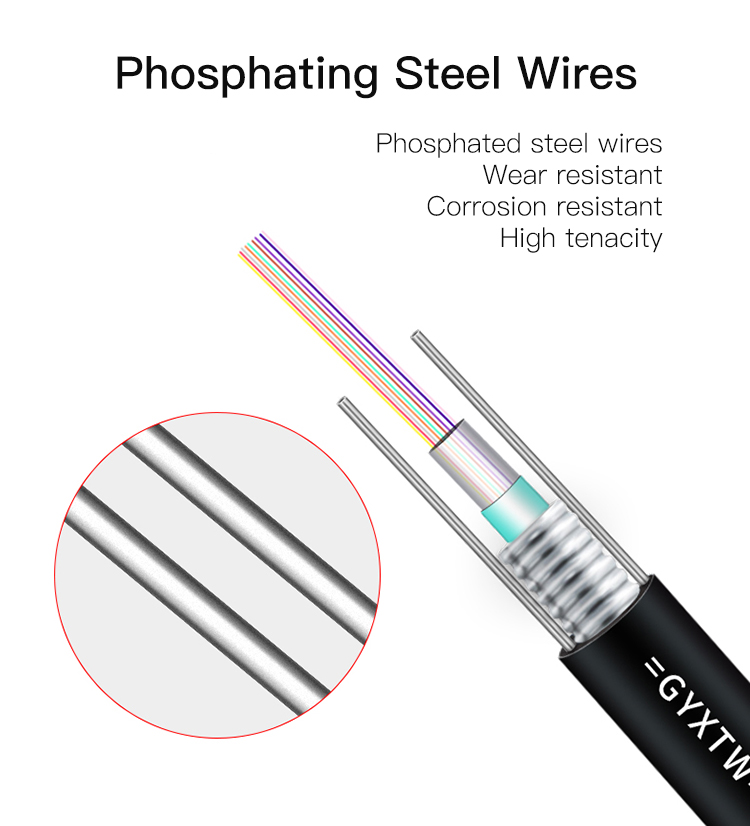

    6.Two parallel steel wires ensure tensile strength
    7.Small diameter, light weight and friendly installation
    8.Long delivery length


    Technical Parameters:


    Product Name:GYXTW Fiber Optic Cable
    Fiber Count:1-24 Cores
    Mode:SM (Single Mode), MM (Multi Mode)
    Armoured:PSP Steel
    Steel Diameter:0.8mm *2
    Jacket Diameter:8.0mm
    Jacket Material:LLDPE
    Cable Length:3Km/Drum
    Insertion Loss:≤0.30dB
    Return Loss:≥50dB
    Durability:≤0.2dB
    Test Wavelength:1310/1550nm
    Operation temperature:-40℃~ 85℃

    Cable TypeFiber CountCable DiameterCable WeightTensile StrengthCrush ResistanceBending Radius
    Long/Short TermLong/Short TermStatic/Dynamic
    mmkg/kmNN/100mmmm
    GYXS/GYXTW-2~122~1210105600/1500300/100010D/20D
    GYXS/GYXTW-2~122~1210.61241000/30001000/300010D/20D
    GYXS/GYXTW-14~2414~2412.51491000/30001000/300010D/20D
    GYXS/GYXTW-26~3626~36141901000/30001000/300010D/20D
    GYXS/GYXTW-38~4838~48152161000/30001000/300010D/20D


    2-24 Core GYXTW Armored Multimode Fiber Optic Cable Double Parallel FRP


    2-24 Core GYXTW Armored Multimode Fiber Optic Cable Double Parallel FRP


    Package and Delivery

    2-24 Core GYXTW Armored Multimode Fiber Optic Cable Double Parallel FRP
