    Aerial Outdoor Fiber Optic Cable G652D G657A 2km Length Loose Tube Structure

    Fibra Optica Cable Aerial Duct Direct Method GYTS Armored Fiber Optic Cable Outdoor

    Description:

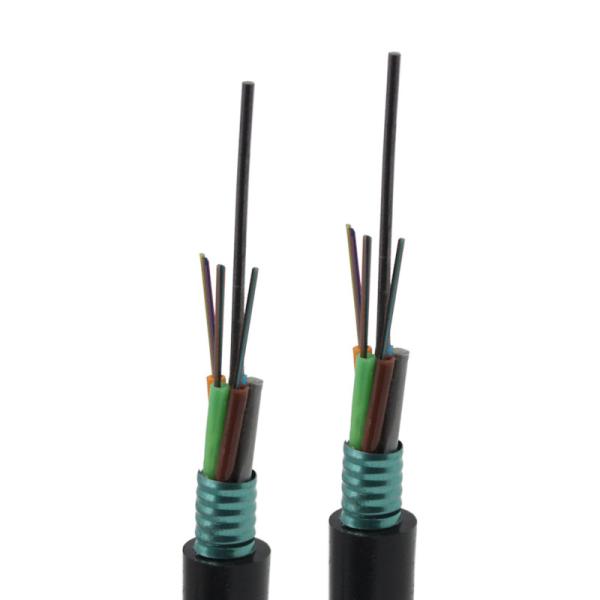

    GYTS is Armored Loose Tube Single Jacket/SingleArmor fiber optic cable with fibers placed in loose buffertube stranded around central strength member.The cable core is protected with jelly to prevent water intrusion and migration,with a corrugated steel tape armorwhich provides rigid protection, rodent resistance and cover with a black Polyethylene out jacket.


    Features:

    Has good mechanical properties and temperature characteristics
    The loose tube material itself has good hydrolysis resistance and high strength
    The tube is filled with a special grease to protect the fiber
    Specially designed tight cable structure to prevent casing retraction
    Good pressure resistance and softness
    Special jackets have excellent performance
    The following measures are taken to ensure the waterproof performance of the cable:
    Single wire center reinforcement core
    The loose tube is filled with special waterproof compound
    Full core filling
    Double-sided coated steel strip (PSP) improves the moisture resistance of the cable


    Application:


    Long-distance telecom, LAN in high-voltage area or access to telecom network
    Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
    Recommended layings methods


    Advantages:


    1. Low dispersion and attenuation.
    2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
    environmental characteristics.
    3. Anti-electromagnetism ability.
    4. Small cable diameter, light cable weight, easily to install.


    Performance :


    1. Max attenuation :1310nm≤0.36 dB/km and 1550nm≤0.22 dB/km
    2. Fiber : G652D
    3. Installation : Suitable for aerial or duct
    4. Application : Apply to Long distance communication system, Local area network system and Subscriber network system
    5. Lifetime : above 30 years
    6. Operating temperature : -40°C~+70°C
    7. Permission bent radius Static : 10 times O.D.
    8. Dynamic : 20 times O.D.

    Technical Parameters


    ItemParameters
    Loose tubeMaterialPBT
    ColorAll colors display
    FillerMaterialPE
    ColorBlack
    CSMMaterialPhosphating steel wire
    ArmouredMaterialPlastic coated steel strip
    Outer jacketMaterialMDPE
    ColorBlack
    Min. bending radiusStatic10 times cable diameter
    Dynamic20 times cable diameter
    Repeating bendingLoad:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
    Tensile performanceShort term1500N
    CrushShort term1000N/100mm
    TorsionLoad:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
    ImpactImpact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
