    Female MC4 Solar PV Connector UL94-V0 Multiple Plugging / Unplugging Cycles

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : MC4 Female
    Certification : TUV
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000 Pieces per Week
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Female MC4 Solar PV Connector UL94-V0 Multiple Plugging / Unplugging Cycles

    1500V DC Solar Cable Connector for Solar PV System TUV Waterproof PV4.0 Cable Connector
    Product Description

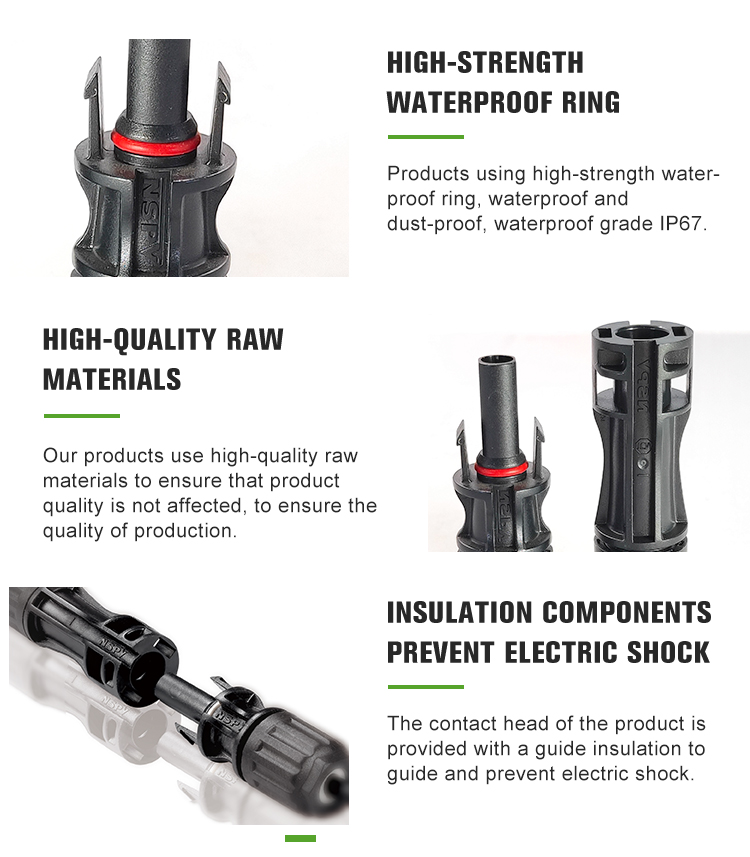

    Simple on-site processing
    Mating safety provided by keyed housings
    Mutiple plugging and unplugging cycles
    Accomodates PV cable with deferent insulation diamaters
    High Voltage and Current carrying capacity
    TUV and CE approved
    Specification:
    Product Specifications
    Insulation materialPPESafety degreeII
    Rated Impulse voltage12KVFlame classUL94-V0
    Rated voltage1500VDC(TUV)Installation typeOutdoor,UV resistant(F1)
    Test voltage8kV(50Hz,1min)Ambient temperature range-40℃…+90℃(IEC)
    contact resistance< 5 mΩSuitable cable cross sections2.5~6mm²/14~10AWG
    Contact materialCopper,Tin platedConnecting systemCrimp connection
    Degree of protectionIP68Nut cap locking force1.0-1.2Nm
    Overvoltage category/Pollution degreeCATIII/2Upper limiting temperature110℃(IEC)
    Regulatory approvalTUV/CE(IEC62852:2014)Rated Impulse voltage16kV
    4.0 Cable Female Connector4.0 Cable Male Connector
    Part No.aCable SizeAmpsPart No.aCable SizeAmps
    4CP254.21.5/2.5mm²/16/14AWG354CN254.22.5mm²&14AWG35
    4CP405.84.0/6.0mm²&10/12AWG354CN405.84.0mm²&12AWG35
    4CP605.84.0/6.0mm²&10/12AWG354CN605.86.0mm²&10AWG35
    4CP100Φ4.510.0mm²& 6AWG604CN100Φ4.510.0mm²&6AWG60

    Female MC4 Solar PV Connector UL94-V0 Multiple Plugging / Unplugging Cycles


    Female MC4 Solar PV Connector UL94-V0 Multiple Plugging / Unplugging Cycles

    1.What’s the application of photovoltaic connectors?

    Photovoltaic connectors are used to connect solar photovoltaic power generation systems.

    2.Which models do photovoltaic connectors include?

    Line to line use cable PV connector (PV004), Multi ways input to one way output. Confluence PV connector (PV004-2T1/PV004-3T1/PV004-4T1 and PV004-T2/T3/T4/T5/T6).

    3.How to select high quality photovoltaic connectors?

    The connector shall have TUV or CE certification, and the conductor of the connector shall be plated with nickel-clad copper or silver-plated copper. The connector housing material shall be PC or high quality PPO material.

    4.How long is the service life and quality assurance time of connector products?

    Connector products can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years.
