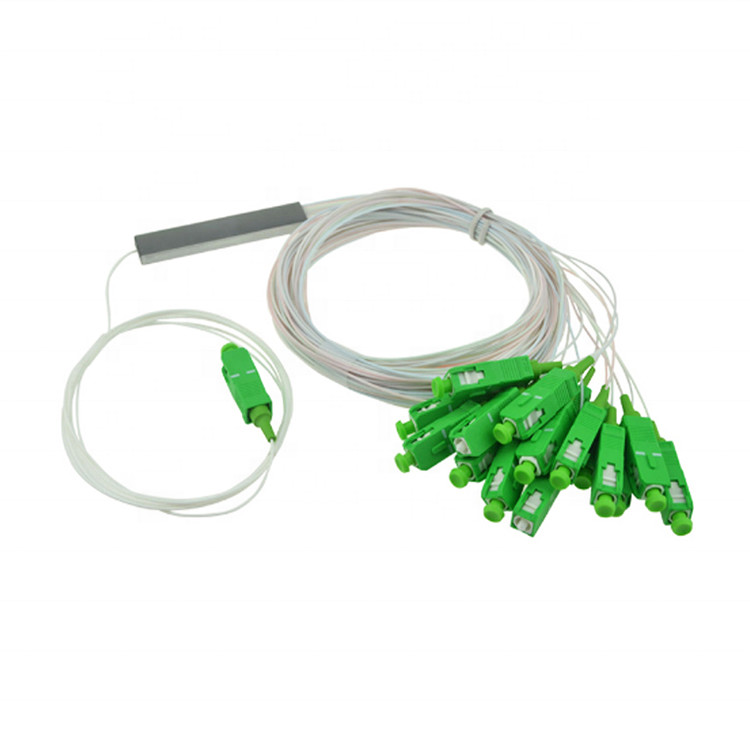

    PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : PSM 1X16-PLC SC/APC
    Certification : CE ROHS FCC
    Price : 6.0USD/PCS
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000 Pieces per Week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type

    PSM 1X16-PLC SC/APC G.657A GPON EPON FTTH PLC splitter 0.9mm Steel Tube fiber optic splitter

    Planar Lightwave Circuit (PLC) is a more recent technology. PLC splitters offer a better solution for applications where larger split configurations are required. To achieve this, waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer very accurate and even splits with minimal loss in an efficient package.
    HODAS provides a various of 1xN and 2xN PLC bare splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 bare fiber type PLC splitters
    Product Advantages
    1) Low Insertion loss
    2) Low PDL
    3) Compact Design
    4) Good channel-to-channel uniformity
    5) Wide Operating Wavelength:From 1260nm to 1650nm
    6) Wide Operating Temperature: From -40°C to 85°C
    7) High Reliability and Stability
    Product Application
    1)Optical Signal Distribution
    2)Data Communications
    3)Lan and CATV System
    4)FTTX Deployment
    5)FTTH Network
    6)Passive Optical Networks (PON)
    7)Measuring System and Laser System
    8)DWDM and CWDM Systems
    Specification
    900um steel tube fiber optic splitter technical specifications
    Model namePSM 1X16-PLC SC/APC
    Wavelength(nm)1260-1650
    Free SampleYES
    MaterialPVC;ABS
    DesignOEM & ODM
    ConnectorsFC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
    fiber optic connectors are available
    Parameters1x21x41x81x161x321x641x128
    Insertion Loss (dB)≤4.2≤7.4≤10.7≤13.9≤17.2≤21.5≤24
    PDL (dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4≤0.5
    Uniformity (dB)≤0.6≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
    Return Loss (dB)≥50
    Directivity (dB)≥55
    Temperature Range (°C)-40~+75
    Storage Temperature (°C)-40~+85
    NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.
