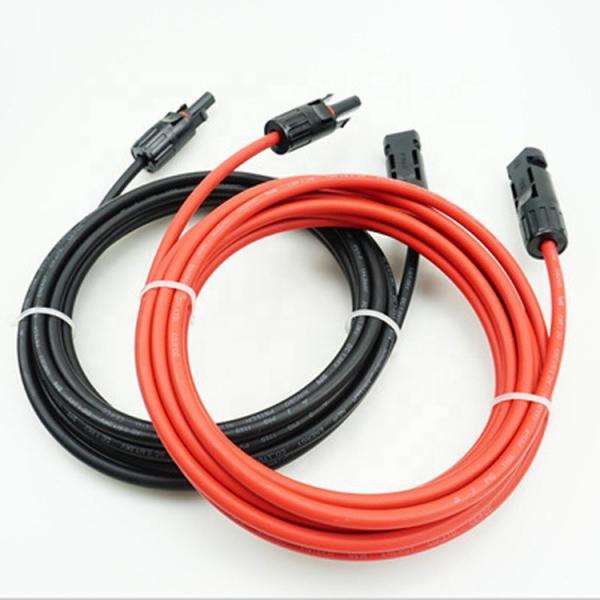

Fire Resistant Cables PV-1X4mm2 High Standard DC Solar PV Cable Wire

Fire Resistant Cables PV-1X4mm2 High Standard Description:
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load: DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502

Fire Resistant Cables PV-1X4mm2 High Standard Technical Data:
1. Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2. Test Voltage:6500V,50Hz,5Min.
3. Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
5. Bending Radius:Fixed installation>4X Occasionally moved>5X

Fire Resistant Cables PV-1X4mm2 High Standard Specification:

      Shenzhen HODAS Technology Co., Ltd. Located in Shenzhen China. HODAS Solar is specialized in manufacturing Solar Energyts. , HODAS Solar has supplied more than 3GW photovoltaic solar panels and millions of units of batteries , solar charger controllers and solar inverters .HODAS Solar is focusing on product development , production , system integration , sales and service . Products include Poly-crystalline PV panel , Mono-crystalline PV panel , Lithium Battery ,Valve Regulated Lead Acid ( VRLA) Battery ,solar charge controller, solar inverter, Turn-key completed Off Grid and On Grid solar systems .

      We aim to develop, manufacture, and deliver the most reliable and cost-effective solar energy solutions to every corner in the world . Our Solar PV module factory covers 90,000 Square Meters ,has more than 750 employees .With an emphasis on management , research and development , HODAS Solar continuously manufactures leading-edge products . The modules range from 5W~500W and are approved by TUV , UL , CE ,IEC61215 ,IEC61730 ,CSA ,CEC ,JET . The production capacity of solar panel has reached 600MW in 2017 . Our Battery factory covers 80,000 Square Meters ,has more than 700 employees .The batteries made by HODAS Solar include Lithium Battery , 2V&12V VRLA AGM type , VRLA GEL type , OPzS and OPzV type which can be applied in Solar Power Plant Storage , Wind Energy Storage, Telecommunications ,UPS , Fire Alarm System , Emergency Lighting , etc . The production capacity of battery has reached 1.5 million units in 2017 . Our Solar Charge Controller and Inverter factory covers 11,000 Square Meters ,has more than 150 employees .The charge controllers and inverters made by HODAS Solar include PWM Controller , MPPT Controller , pure sine wave inverter . All types of inverters and controllers are approved by CE , UL . The products have been exported to more 80 different countries .

      HODAS Solar also offers the turn-key integration system that incorporate solar , LED lighting , energy products . We have installed and invested several both jointly and independently in China and abroad . he company follows ISO9001 quality system strictly . Up to date , HODAS Solar has largely realized production line automation with imported advanced equipment and technology from Germany , USA and Japan .We keep strict controls on incoming inspection , production process , finished goods inspection. All products are certified by TUV IEC(Germany) ,UL(America) ,JET(Japan),CSA( Canada) ,CEC( Australia ) and CE . With excellent quality and good reputation , HODAS Solar Panel and battery have been exported to more 120 different countries in the worldwide , especially to America , Germany , UK , Japan . HODAS Solar will continue to innovate and improve its renewable energy product portfolio , to help the world create a cleaner and brighter future .
