    144 Fiber Optic Splice Closure FOSC Waterproof Dome Type for FTTH FTTB

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : HDS-905
    Certification : CE ROHS
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Pieces per Week
    Delivery Time : 20-25 work days
    • Product Details
    • Company Profile

    144 Fiber Optic Splice Closure FOSC Waterproof Dome Type for FTTH FTTB

    HDS-903 IP65 Waterproof Dome Vertical Type 144 Fiber Optical Splice Closure (FOSC)

    Fiber closure is used for connecting and protecting singal core or bunch cables. It can be placed in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always aim to the R&D of communication equipment. Our fiber closures can improve the operation of your network communication system.Closure is suitable for the applications up to 96 single fibers,which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb …(FTTH/FTTC).


    Features:


    The closure can be used in duct, buried, overhead..etc
    High quality impact material.pp and internal is PP,ABS
    Designed for ftth with adapter if need.
    Fiber storage with big basket
    Modular fiber management system
    Cable diameter range: 8~20 mm
    Sealing way of cables:Mechanical seaing by silicon rubber
    Quality warranty:2 years
    IP rating is IP68

    Key Features

    1. Suitable for ordinary fiber and ribbon fiber.
    2. Fully kitted with all parts for convenient operation.
    3. Overlap structure in splicing tray for easy installation.
    4. Fiber-bending radium guaranteed more than 40mm.
    5 . Easy to install and re-entry with a common can wrench.
    6. Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
    7. Stand up to severe condition of moisture,vibration and extreme temperatures.


    Main Technical Parameters

    Model name (Buyer’s range)Fiber optic splice closure HDS-905
    DescriptionFiber Optic Splice Closure. May be used for all fiber optic cable. Sheath retention & central strength member termination system included. Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack. Installation and reentry with a minimum of tools. Re-enterable and reusable.
    Cable Port1 oval port Ø30x45mm and 4round ports Ø20mm
    Capacity of FOSC144 (cores)
    Fiber optic splice trayMax.6 trays
    IP GradeIP68
    Applicationaerial, underground, wall-mounting, duct-mounting and handhole- mounting.
    Ambient temperature rangesFrom –40 to +65℃
    Physical FeaturesSize, mm475x210
    MaterialPlastic
    ColorBlack
    CaseSee the samples from the Supplement No.4
    Complete SetCarton Box1 pcs
    FOSC (cover+base+hoop)1 pcs
    Seal fitting1 pcs
    Fiber optic splice tray with cover2 pcs
    Nylon tie24pcs
    Numbering paper (1-12)4 pcs
    Buffer tube 0,5m2 pcs
    Heat-shrinkable protective sleeves 60mm24 pcs
    Heat shrinkable fixing sleeve1- Ø 30-45 мм, 3-Ø 20 мм
    Branching clip1 pcs
    Earthing wire1 pcs
    Aluminum foil paper1 pcs
    Insulation tape1 pcs
    Sealing tape1 pcs
    Abrasive cloth1 pcs
    Metal bracket1 pcs
    Desiccant1 bag
    Installation Manual1 pcs
    sticker on the Carton BoxHDS-905

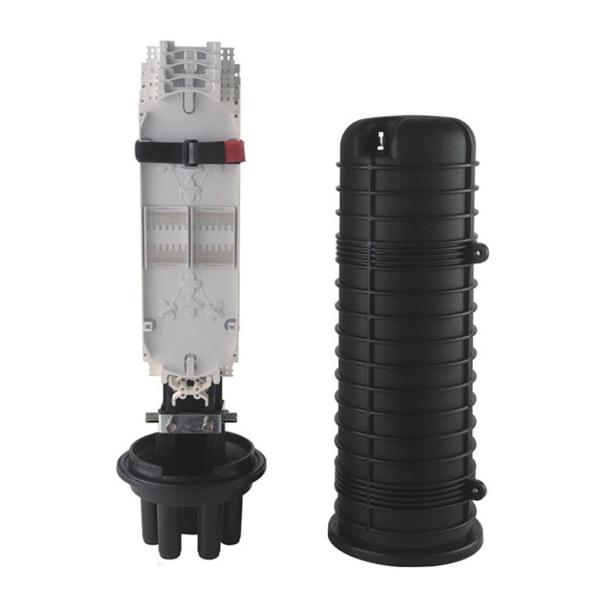

    Detail Image

    144 Fiber Optic Splice Closure FOSC Waterproof Dome Type for FTTH FTTB

    How to order from us?
    1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
    2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
    3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
    4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

    MOQ:
    1. For the sample order, we have no limit for the quantity.
    2. From the second order, the MOQ is 30pcs.
    3. OEM MOQ is 300pcs/model, Special cases can be negotiated.

    Payment Terms:
    T/T, Western Union, PayPal, Money Gram
    1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
    2. We can put customers' orders down to production once we get the bank slip copy.
    3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.

    Lead Time:
    1. Sample order can be delivered from our company in 3-4 working days.
    2. General order can be delivered from our factory in 5 - 7working days.
    3. Big order can be delivered from our factory in 15-20 working days at most.

    Shipping:
    FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.

    OEM/ODM Service:
    1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
    2. We accept ODM projects, and welcome your enquiries!

    Warranty Policy:
    We provide 3-5 years warranty for Fiber optical closure after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.

    Q: Why do you choose us?
    1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
    2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
    3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
    4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
    5) Technical support. In before sale and after sale
    6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
