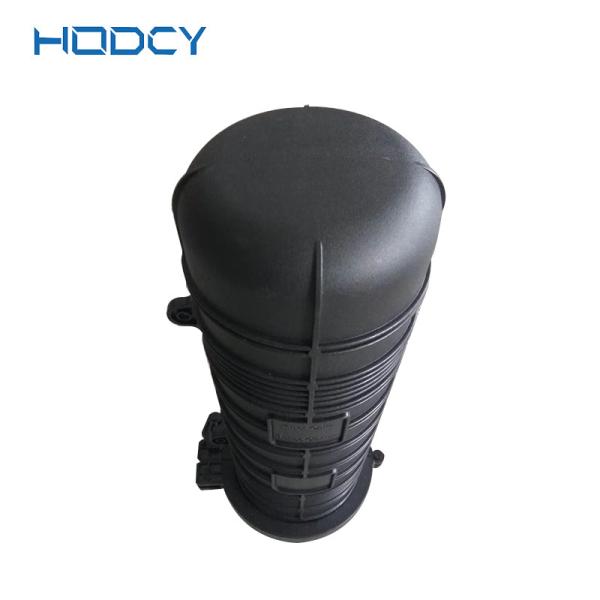

HDS-905 144F Fiber Optic Splice Closure IP68 Dome Vertical Type

    Buy cheap HDS-905 144F Fiber Optic Splice Closure IP68 Dome Vertical Type from wholesalers

    Buy cheap HDS-905 144F Fiber Optic Splice Closure IP68 Dome Vertical Type from wholesalers
    • Buy cheap HDS-905 144F Fiber Optic Splice Closure IP68 Dome Vertical Type from wholesalers

    HDS-905 144F Fiber Optic Splice Closure IP68 Dome Vertical Type

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : HDS-905
    Certification : CE ROHS
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Pieces per Week
    Delivery Time : 20-25 work days
    • Product Details
    • Company Profile

    HDS-905 144F Fiber Optic Splice Closure IP68 Dome Vertical Type

    HDS-903 IP65 Waterproof Dome Vertical Type 144 Fiber Optical Splice Closure (FOSC)

    Product Description

    Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available.
    The DOME type closure is also called Vertical closure. The input and output ports are at the bottom of the closure. DOME closure is more suitable for the application on accessing layer.
    GreenTel provides various shapes closure of DOME type. All the closures we offered are with a great sealing performance. High quality plastic material also ensures the durability whether the closure is in air, in pipeline or buried underground.

    Key Features

    Full mechanical sealing structure.
    High quality industrial plastic body material.
    One oval and four round ports for cable entrance.
    Suitable for cable diameter 5mm-16.5mm.
    Aerial,pole-mounted,wall mounted and handhole application.
    Protection level reaches IP68.
    360 degrees access,fiber bending > 40mm.
    Maximum splice capacity: 144 fibers.
    Number of trays: 6 pcs x 24F
    Main Technical Parameters

    Model name (Buyer’s range)Fiber optic splice closure HDS-905
    DescriptionFiber Optic Splice Closure. May be used for all fiber optic cable. Sheath retention & central strength member termination system included. Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack. Installation and reentry with a minimum of tools. Re-enterable and reusable.
    Cable Port1 oval port Ø30x45mm and 4round ports Ø20mm
    Capacity of FOSC144 (cores)
    Fiber optic splice trayMax.6 trays
    IP GradeIP68
    Applicationaerial, underground, wall-mounting, duct-mounting and handhole- mounting.
    Ambient temperature rangesFrom –40℃ to +65℃
    Physical FeaturesSize, mm475x210
    MaterialPlastic
    ColorBlack
    CaseSee the samples from the Supplement No.4
    Complete SetCarton Box1 pcs
    FOSC (cover+base+hoop)1 pcs
    Seal fitting1 pcs
    Fiber optic splice tray with cover2 pcs
    Nylon tie24pcs
    Numbering paper (1-12)4 pcs
    Buffer tube 0,5m2 pcs
    Heat-shrinkable protective sleeves 60mm24 pcs
    Heat shrinkable fixing sleeve1- Ø 30-45 мм, 3-Ø 20 мм
    Branching clip1 pcs
    Earthing wire1 pcs
    Aluminum foil paper1 pcs
    Insulation tape1 pcs
    Sealing tape1 pcs
    Abrasive cloth1 pcs
    Metal bracket1 pcs
    Desiccant1 bag
    Installation Manual1 pcs
    sticker on the Carton BoxHDS-905
