    Waterproof MC4 Solar Extension Cable / 12AWG Solar Adaptor Cable

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : PV1500
    Certification : TUV&UL
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000 Pieces per Week
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Waterproof MC4 Solar Extension Cable / 12AWG Solar Adaptor Cable

    Mc4 Connector Waterproof Solar Photovoltaic Extension Cable 12AWG Solar Adaptor Cable


    Product Features:

    The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.


    Description:

    Rated Voltage: DC 1500V
    Ambient Temperature: -40ºC--90ºC Max. Temperature at Conductor 120ºC:
    Conductor: Tin-Plated copper, Class5
    Insulation: 125ºC XLPE
    Jacket: 125ºC XLPE
    Color: Black
    Marking: FRCABLE IEC 62930 DC 1.5KV, 1X4.0mm2 Meter marking


    Product Name

    Mc4 Connector Waterproof Solar Photovoltaic Extension Cable 12AWG Solar Adaptor Cable

    Insulation Material

    PPO

    Contact Material

    Copper,Tin plated

    Connector

    Solar Panel Connector

    Wire Color

    Black/Red

    Wire Gauge

    2.5mm2, 4mm2, 6mm2, 10mm2 (14/12/10/8AWG)

    Rated Current

    30A(2.5mm2),50A(4mm2,6mm2)

    Rated Voltage

    1000V/1500V DC

    Test Voltage

    8kV(50Hz,1min)

    Wire Length

    1m(3ft),2m(6ft),3m(10ft), 6m( 20ft), 10m(30ft), Can be customized

    Waterproof protection

    IP68

    Delivery Time

    5-10 working days

    Application

    Suitable for Generator, Solar Panel system.

    Package

    Bulk Packing, we accept custom packing

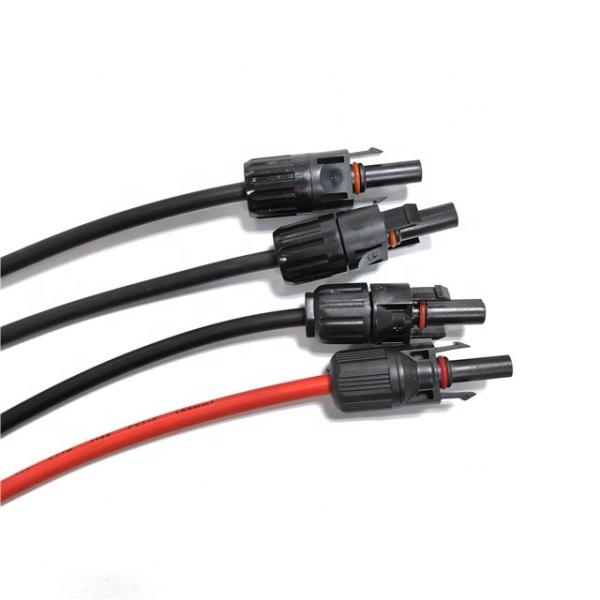

    Product Picture


    Quality Waterproof MC4 Solar Extension Cable / 12AWG Solar Adaptor Cable for sale
