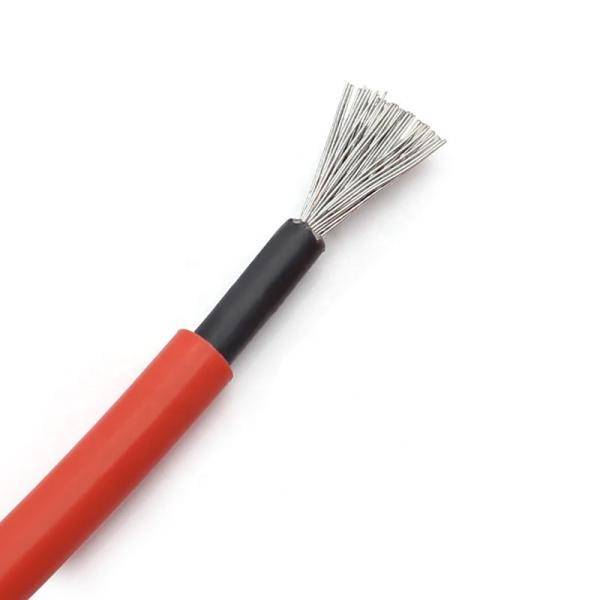

    10mm2 Solar Cable Single Core Tinned Copper Conductor XLPE Insulated PVC Sheathed Cable

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : PV1500
    Certification : TUV&UL
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000 Pieces per Week
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    10mm2 Solar Cable Single Core Tinned Copper Conductor XLPE Insulated PVC Sheathed Cable

    UL TUV Approved Single Core 10mm2 Tinned Copper Conductor XLPE Insulation Solar Power Cable
    Product Features :

    PV cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.

    Electrical Characteristics:
    Maximum Operating Voltage: 600 VRMS (UL PV)
    Physical Characteristics:
    Temperature Rating: -40°C to 90°C
    Conductor AWG: 12 to 2000 AWG
    Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
    Separator: Paper Tape
    Insulation Material: XLPE Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility
    Jacket Material: Sunlight-Resistant PVC Black, low smoke, non-halogenated,flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854
    Min. Bend Radius: 8x Diameter

    Physical Characteristics (cont’d.):
    Applicable Specifications:
    UL Type PV (overall) UL 4703 USE-2 Rated (14 AWG & Larger 600V)
    UL Type RHW-2 (90°C wet) (14 AWG & Larger per UL)
    ROHS Compliant CE
    Flame Resistance: VW-1

    Product Paramenters
    product brand
    Hochiry
    product name
    Single core photovoltaic cable
    Product number
    PV1-F4.0
    Nominal cross section
    2.5mm²,4mm²,6mm²
    Rated current
    55A
    Rated voltage
    DC:108KV AC U/U: 0.6/1KV
    Product conductor
    Copper wire structure
    Insulation wall thickness
    0.5mm
    Wall thickness of sheath
    0.5mm
    Service life
    ﹥25 years
    Working temperature
    -45℃-120℃
