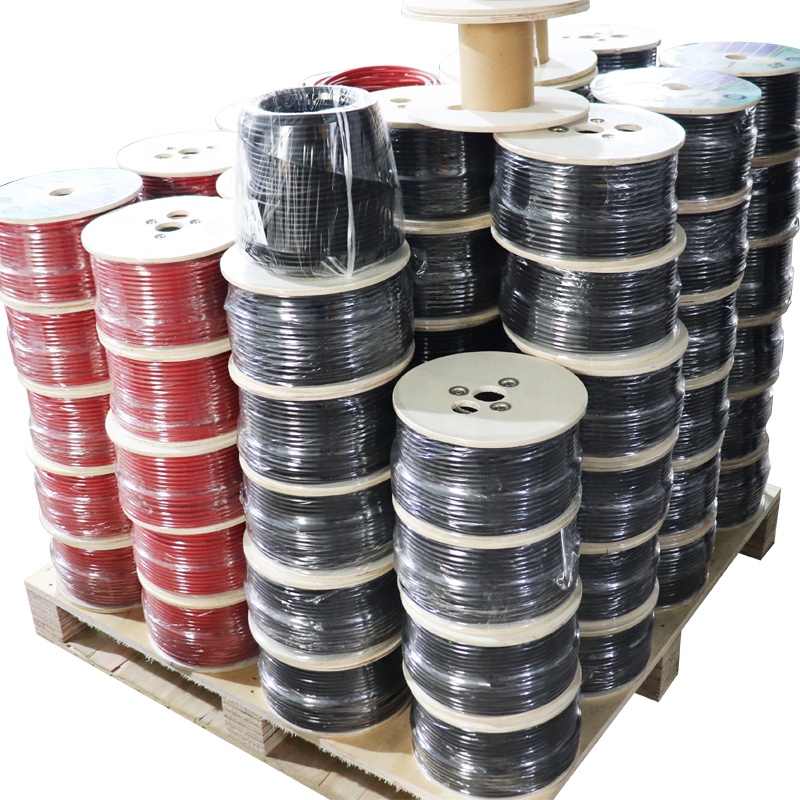

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

    Buy cheap Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station from wholesalers

    Buy cheap Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station from wholesalers
    • Buy cheap Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station from wholesalers
    • Buy cheap Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station from wholesalers

    Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : PV1500
    Certification : TUV&UL
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000 Pieces per Week
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

    4mm2 Photovoltaic Cable Twin Core DC Cable Extension Cable
    Twin Core DC Cable Extension Cable Features

    A. Application: Double insulation,electron-beam cross linked cables for photovotaic power station.
    Construction:Tinned copper,according toVDE0295/IEC60228,Class5
    B. Material Properties/Standards:
    1. Fire-resistant performance:IEC60332-1.
    2. Smoke emission:IEC61034;EN50268-2
    3. Low fire load: DIN51900
    4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
    5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502

    Product Paramenters:


    ConstructionConductor construction.ConductorOuterResistance Max.Current Carring Capacity
    nxmm2n/mmmmmΩ/KmA
    1X1.530/0.251.584.9013.3030
    1x2.550/0.252.025.457.9841
    1x456/0.32.306.104.7555
    1x684/0.33.427.203.3970
    1x10.0142/0.34.569.001.9598
    1x16.0228/0.35.6010.201.24132
    1x25.0361/0.36.9512.000.795176
    1x35.0525/0.38.7413.800.565218
    1x50.0720/0.39.2014.800.393280
    1x70.0988/0.311.0016.900.277350
    1x95.01349/0.312.5018.700.21410
    1x120.01691/0.314.2020.700.164480

    Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
    Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
    Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
    Nominal Voltage : AC 600/1000V DC 1000/1800V
    Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
    Sheath Color :Black or as per customer's requeit
    Temperature Rating:45°c upto +125°c -40°F upto +257°F
    Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
    Max.Short circuit temperature:280°c,+536°F
    Bending Radius:Fixed installation>4X Occasionally moved>5X
    Product Details

    Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

    Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

    ConstructionConductor construction.ConductorOuterResistance Max.Current Carring Capacity
    nxmm2n/mmmmmΩ/KmA
    1X1.530/0.251.584.9013.3030
    1x2.550/0.252.025.457.9841
    1x456/0.32.306.104.7555
    1x684/0.33.427.203.3970
    1x10.0142/0.34.569.001.9598
    1x16.0228/0.35.6010.201.24132
    1x25.0361/0.36.9512.000.795176
    1x35.0525/0.38.7413.800.565218
    1x50.0720/0.39.2014.800.393280
    1x70.0988/0.311.0016.900.277350
    1x95.01349/0.312.5018.700.21410
    1x120.01691/0.314.2020.700.164480

    Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
    Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
    Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
    Nominal Voltage : AC 600/1000V DC 1000/1800V
    Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
    Sheath Color :Black or as per customer's requeit
    Temperature Rating:45°c upto +125°c -40°F upto +257°F
    Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
    Max.Short circuit temperature:280°c,+536°F
    Bending Radius:Fixed installation>4X Occasionally moved>5X
