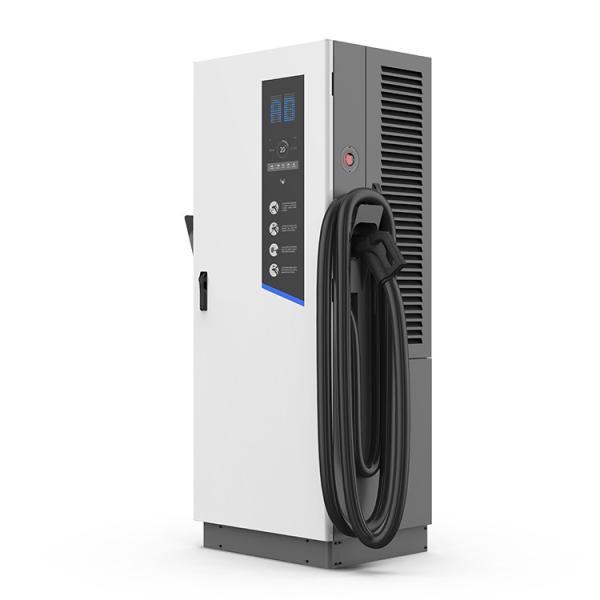

    Intelligent 60KW 80KW EV Charing Stations Electric Vehicle EV Charger

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : Hochiry-PS-100KW
    • Product Details
    • Company Profile

    Intelligent 60KW 80KW EV Charing Stations Electric Vehicle EV Charger

    Intelligent Electric Car Charging Piles 60KW 80KW CCS DC EV Stations Electric Vehicle Battery EV Charger
    KW-PEVC3106E is a basic DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.
    Simple installation: no complicated installation process is required, it can be used when power is connected.


    △ 7 Inch LCD Display: LCD screen can display the real-time charging status, including time, voltage, current, power and temperature.

    IP54, Strong and Durable: Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.

    Easy to install and use: The installation process is simple, payment is convenient and fast, supports IC card
    swiping. Fully compatible with all EV in the market.

    ☎️WARRANTY — 24-month warranty and life-time hassle-free technical support.


    Products Description

    Power Suppply
    3P+N+PE
    Rated Voltage
    400VAC±15%(50/60Hz)
    THDi
    ≤5%
    Efficiency
    ≥95%
    Power Factor
    ≥0.98
    Connector Type
    CCS Combo 2
    Output Voltage
    150-1000VDC
    Maximum Output Current
    200ADC
    Output Power Rating
    60kW(Max)/80kW(Max)
    Output Voltage Accuracy
    ≤0.5%
    Output Current Accuracy
    ≤±5%
    HMI
    7-Inch Touchscreen
    Payment Method
    RFID Card,APP
    Cable Length
    5m
    Network Connection

    Cellular modem:GSM/3G/4G

    LAN:10/100 Base-T Ethernet
    Communication Protocol
    OCPP 1.6J
    Operating Noise Level
    ≤60dBA
    Ingress Protection(IP/IK rating)
    IP54
    Power Meter
    Accuracy Class 1 energy meter
    Enclosure
    Galvanized steel
    Product Dimension
    700 x 550 x 1800mm(W x D x H)
    Package Dimension
    950 x 720 x 1950mm(W x D x H)
    Protection
    Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection
    Certification Standard
    EN/IEC 61851-1,EN/IEC 61851-23,EN/IEC 61851-24,EN/IEC62196-1,EN/IEC62196-3
    Operating Temperature
    -35℃ to +50℃
    Storage Temperature
    –40°C to +75°C
    Maximum Installation Height
    ≤2000m
    Operating Humidity
    5%–95% RH
