    180KW IEC CCS Electric Car EV Charging Station IP55 With 2 Ports

    Ask Lasest Price
    Brand Name : Hochiry
    Model Number : Hochiry-PS-160KW
    • Product Details
    • Company Profile

    180KW IEC CCS Electric Car EV Charging Station IP55 With 2 Ports

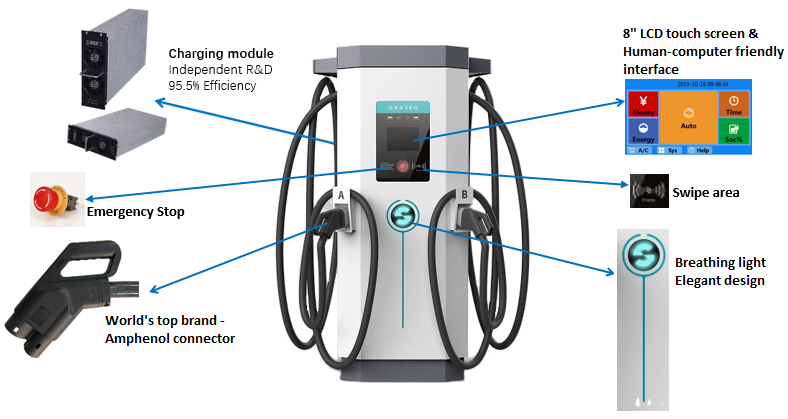

    DC Fast EV Charging Station:


    Adopting a nuclear power-grade high-power power module platform, the safety and reliability are higher;
    The new high-efficiency three-phase PFC circuit topology is adopted, the power factor is greater than 0.99, and the harmonic distortion rate is ≤5%.
    The high-frequency switching power supply module adopts full-bridge phase-shift soft-switching technology, and the execution efficiency is high.
    The advanced digital current sharing technology effectively improves the current sharing accuracy and anti-interference; the first module sleep technology and the wheeling technology ensure the high-efficiency operation of the system;
    Intelligent charging process control and perfect charging process monitoring and protection, fool-like operation;
    A variety of charging methods such as timed charging, quantitative charging, fixed amount charging and automatic charging are available;
    Real-time display of information such as the amount of charge, charging time, current electricity price, charging price, and
    operating status;
    The RS-485 networking communication interface can be reserved, and the optional GPRS networking mode can be provided;
    Module hot swap technology makes maintenance more convenient;
    Working environment temperature -20+50 °C


    Scope of application:


    Integrated DC charging pile is suitable for urban public charging stations (bus, taxi, official car, sanitation car, logistics
    car, etc.) city public charging station (private car, commuter car, bus) cityVarious parking lots in residential areas, shopping plazas, power business places,etc.; intercity highway charging stations, etc.


    * DC Fast EV Charging Station

    * Output power - 60KW, 90kW, 120kW, 150kW, 200KW

    * Connector - CCS2 (Chademo/CCS1 optional)

    * Networking way: 4G, Ethernet

    * OCPP 1.6J supported

    * TUV CE certification

    * Suitable for public parking lot, bus station, gas station, freeway service area


    TypeDC Charging Pile with two CCS-2 plugs
    Description60kW DC Pile90kW DC Pile120kW DC Pile150kW DC Pile200kW DC Pile
    ModelGSCS750100A-T08GSCS750150A-T08GSCS750200A-T08GSCS750250A-T08GSCS750500A-T08
    Power60kW90kW120kW150kW200kW
    Input Rating3-phase 400V±15% AC
    Working frequency45~65Hz
    Output voltage200~750V DC
    Output current5-150A5-225A5-300A5-375A5-500A
    Power factor0.99
    Efficiency≥95%
    Communication interface4G, Ethernet
    Screen size8”
    Charging cable length5m
    Mounting typeFloor-mounted type
    Dimension702mm*1007mm*1815mm
    WeightApprox. 400KG
    IP classIP55
    Cooling methodAir cooling
    Working temperature-30℃~+55℃
    Storage temperature-40℃~+70℃
    AltitudeUp to 6000 feet (≤2000 m)
    Protection functionOver voltage over current
    Certificate No.50347817 001_Certificate/AN504631360001
    Reference StandardDIN70121/ISO15118/IEC61851/SAEJ1772
    CertificateCE certified by TUV
    Support LanguageEnglish, Spanish, or other languages required
    Push ButtonsEmergency stop
    User AuthenticationRFID card reader, user name & password, mobile No. & pin code
