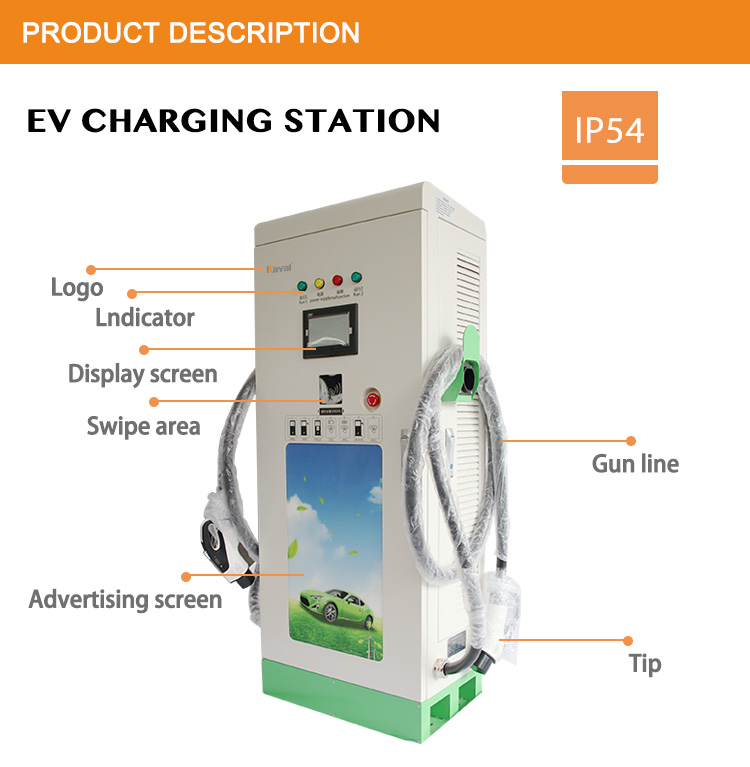

    IP55 480KW RFID Card EV Charging Station Floor Standing

    480KW DC Split Type European Standard EV Chargers Fast Charging Stations

    Main features:

    Feature:

    1.Speed charging with up to 4800 Km/h!

    2.The Hochiry-PS-480KW quick-charging station was developed for electric vehicles with CHAdeMO or CCS Combo DC charging sockets and is designed for commercial use.

    3.It is compatible with all popular industrial sockets and can be used with CEE125 plug sockets.

    4.This charger is internet connected via OCPP client and server.

    5.RFID card,Paypal,credit card payment systems supported (need Wi-fi or 4G).

    6.With 15 inch touching display screen panel.


    Brief Introduction

    This CHAdeMo, CCS Combo2 and AC Type2 Charger is an AC/DC three-gun integrated type, with a maximum AC output of 43kW and a DC maximum output of 360kW. Three charging ports CCS, CHAdeMO and AC are equipped to provide users with multiple charging options. The charger is for indoor/outdoor placement. The appearance of the charger is beautiful. It supports credit card, APP and other payment methods, and can be started and stopped remotely. It is suitable for charging electric vehicles in charging stations and bustling areas. The charger's protocol and man-machine function must meet the relevant requirements of IEC standards IEC 61851-1 and IEC 62196-24

    Model480kW Multi-Standards DC quick charger

    AC Input

    Input Rating400VAC±15%,480VAC±15%
    AC Input Connection3P+N+PE (Wye connection)
    Max. Input PowerAC+DC serve at the same time:43KVA+500KVA=543KVA
    Frequency50/60 Hz
    Power Factor>0.99 APFC
    Efficiency95%
    DC OutputOutput Voltage Range50~1000Vdc
    Max.Output Power480kW
    Voltage Accuracy± 1%
    Current Accuracy± 1%

    User Interface

    TFT-LCD Touch Panel15' T FT-LCD touchable screen(Android or Win CE)
    Emergency Stop ControlPress emergency stop button isolator) between input and ouput Manual release switch
    User AuthenticationRFID/APP/VISA/MASTER
    Display informationCharging process and status / Alarm and warning messages

    Environment

    External3/4G,WiFi and Ethernet
    InternalCAN Bus/RS485/RS232
    LxWxH1417X1029X2099mm
    Protocol and standardCHAdeMO 2.0 / DIN 70121/ISO15118/IEC61851-23JEC61851-24
    Electrical IsolationIsolation between input and output
    CoolingForced Air
    Input ProtectionOVP,OCP,OPP,OTP,UVP,residual current detection,surge protect cabinet-open detection(rear door
    Output Protectionshort circuit protection,OCP,OVP,LVP,OTP,residual current detection
    Noise<55dB
    ProtectionIP54/IK10
    Net weight580 kg
