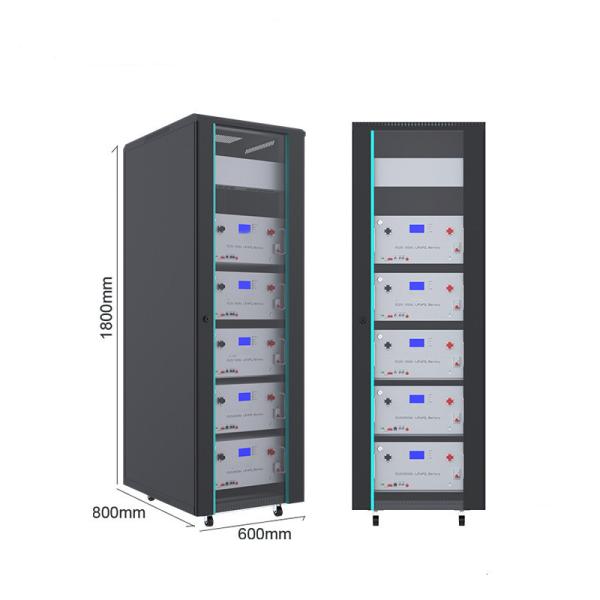

    Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

    Ask Lasest Price
    Brand Name : Hochiry
    Certification : TUV
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Piece per week
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

    Home Solar Energy System Rack Module 48V 400Ah 20Kwh 30Kwh 40Kwh 50Kwh 100Kwh 150Kwh Lithium Ion Battery

    product-GSL ENERGY-img


    ItemHCR48200Remark
    Combination Method16S34P48
    Rated Capacity200Ah

    Standard discharge after Standard

    charge(package)

    Factory Voltage51.2VMean Operation Voltage
    Voltage at end of Discharge46VDischarge Cut-off Voltage
    Charge Voltage56VCharge Cut-off Voltage
    Internal Impedance≤55.0mΩ

    Internal resistance measured at AC

    1KHZ after 50% chargeThe measure

    must uses the new batteries that within

    one week after shipment and cycles less

    than 5 times

    Standard charge

    Constant Current 50A

    Constant Voltage see No.5

    0.02CA cut-off

    Charge time : Approx 2.5 h
    Maximum Continuous Charge Current100A
    Standard Dischargeend voltage see NO.4
    Maximum Continuous Discharge Current120A100A when 0ºC>T≥-20ºC
    Operation Temperature RangeCharge: 0~45℃

    60±25%R.H.

    Bare Cell

    Discharge: -20~55℃
    Storage Temperature RangeLess than 12 months : -10~35℃

    60±25%R.H.

    at the shipment state

    Less than 3 months: -10~45℃
    Less than 7 day : -20~65℃
    Dimensions720*480*222.2mmInclude Bracket
    WeightApprox :102.5 kg
    BMS PortCANBUS/RS485
    BMS Support16PCS Parallel connection160KWH at max

    PRODUCTS DISPLAY


    Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh


    Product Performance

    Vertical industry integration ensures more than 6500 cycles with 90% DoD.
    Compact and fashionable design fits in your sweet home environment.
    Modular design gives the end customers the power of choice of capacity.
    Compatible with most of the available Hybrid inverters.
    Simple buckle fixing minimize the installation time and cost.
    Safety Cert.TüV CE UN38.3 IEC.


    PRODUCT ADVANTAGE


    product-GSL ENERGY-Home Solar Energy System Rack Module 48V 400Ah 20Kwh 30Kwh 40Kwh 50Kwh 100Kwh 150


    ON


    Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh


    Energy Storage
    --Solar-Wind Power System / City Grid (On/Off) / Community and Family
    Back-up System and UPS
    --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
    Other Applications
    --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
    --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
    --LED Backup / Engine Starting Battery,etc.


    PACKING

    product-GSL ENERGY-img

    Good Quality Packs
    VS
    product-GSL ENERGY-img-1

    Low Quality Packs

    SUPER SAFETY TEST


    product-GSL ENERGY-img-1

    Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.

    WHY CHOOSE US


    Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
    Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
    Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
    Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
    Fresh battery-- All battery is fresh Production.


    product-GSL ENERGY-img-1
